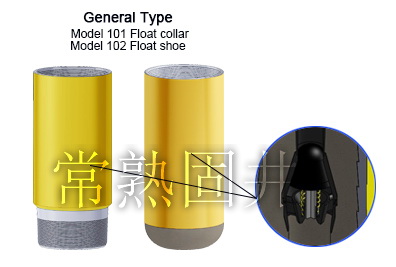

| Model 101-102 |
| Time£º2016/1/27 View£º8788 |
This product is in accordance with API standard 10F, Main body using special oil pipe manufacturing, The filler is the special grade G cement; Back pressure valve is a spring-loaded phenolic plunger valve, it is using polymer materials, With the performance of resistance to high temperature and high pressure. The valve is the standard valve suitable for most applications. The design of the valve ensures positive sealing in vertical, horizontal and all deviated wells. The design of this valve prevents impingement and erosion by the circulation fluids, ensuring positive sealing after prolonged circulation. The materials used within the valve are plastic and rubber that are easily drilled out with PDC bits. Anti-rotating Type(103/104), Double valves Type(105/106),Stab-in Type(107/108/109), side ports, up-jets Type, spade noses Type, and bullet noses Type are available and alternatively. |
|
|
|
