| Model 800-801 |
| Time£º2016/1/27 View£º4706 |

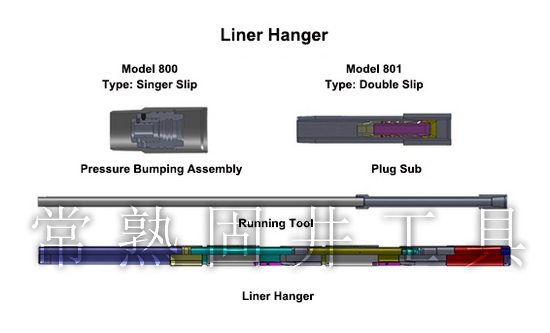

The Model 800 Liner Hanger is a premium hanger with an integral body. The hanger mandrel is machined from heavy wall mechanical tubing and treated to the required grade. Integral construction eliminates all internal connections which provide maximum pressure ratings and liner hanging capacity. This premium liner hanger can be rotated into place, set and then rotated through the liner cementing operation.
FEATURES and BENEFITS:
• Enhanced fluid bypass with special design.
• Long recessed type dovetail slips for long heavy liners.
• Faster running speed with dovetail design.
• unique clutch in setting collar allows for rotating of liner through tight hole spots, and rotating of liner after hanger is set throughout the cementing operation.
• Manufactured from mechanical tubing of equivalent liner grade; 80,000 psi is standard, other yield strengths and materials available by special order.
• Slips manufactured to 55-60 Rockwell ¡°C¡± hardness for high-grade casing compatibility. |
|
|
|
